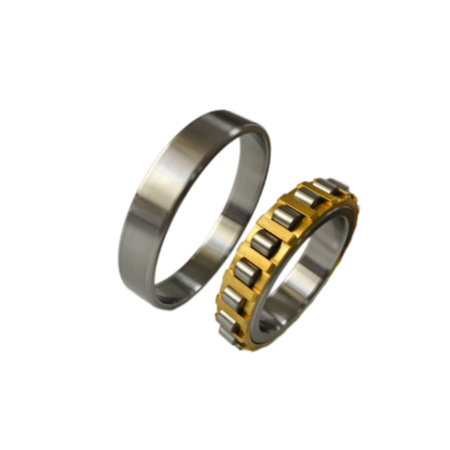

Cylindrical roller bearings

FILTERS

Bore diameter d

Outside diameter D

Width B

Version

results

N1006K	30	55	13	0.6	48.5	18.6	18.0	19000	22000	0.3	0.13
N1007K	35	62	14	0.6	55.0	23.6	24.5	16000	18000	0.4	0.17
N1008K	40	68	15	0.6	61.0	27.5	29.0	15000	17000	0.4	0.22
N1009K	45	75	16	0.6	67.5	32.5	35.5	13000	15000	0.5	0.27
N1010K	50	80	16	0.6	72.5	36.0	41.5	12000	14000	0.5	0.29
N1011K	55	90	18	1.0	80.5	41.5	50.0	11000	13000	0.6	0.44
N1012K	60	95	18	1.0	85.5	44.0	55.0	10000	12000	0.7	0.47
N1013K	65	100	18	1.0	90.5	45.0	58.5	9500	11000	0.7	0.49
N1014K	70	110	20	1.0	100.0	64.0	81.0	9000	10000	0.8	0.69
N1015K	75	115	20	1.0	105.0	65.5	85.0	8500	9500	0.8	0.72
N1016K	80	125	22	1.0	113.5	76.5	98.0	7500	8500	0.9	0.98
N1017K	85	130	22	1.0	118.5	78.0	104.0	7500	8500	0.9	1.04
N1018K	90	140	24	1.1	127.0	93.0	125.0	6700	7500	1.0	1.34
N1019K	95	145	24	1.1	132.0	96.5	129.0	6300	7000	1.0	1.40
N1020K	100	150	24	1.1	137.0	98.0	134.0	6000	6700	1.1	1.46
N1021K	105	160	26	1.1	145.5	112.0	153.0	5600	6300	1.1	1.82
N1022K	110	170	28	1.1	155.0	140.0	190.0	4800	6000	1.2	2.3
N1024K	120	180	28	1.1	165.0	150.0	208.0	5000	5600	1.3	2.47
N1026K	130	200	33	1.1	182.0	180.0	250.0	4300	4800	1.4	3.72
N1028K	140	210	33	1.1	192.0	183.0	235.0	4000	4500	1.4	3.94
N1030K	150	225	35	1.5	205.5	208.0	310.0	3800	4300	1.6	4.75
N1032K	160	240	38	1.5	220.0	245.0	355.0	3400	3800	1.6	5.79
N1034K	170	260	42	2.1	237.0	300.0	430.0	3200	3600	1.8	7.77
N1036K	180	280	46	2.1	255.0	360.0	520.0	3000	3400	1.9	10.2
N1038K	190	290	46	2.1	265.0	365.0	550.0	2800	3200	2.0	28.6
N1040K	200	310	51	2.1	281.0	400.0	600.0	2600	3000	2.1	30.9
NN3006K	30	55	19	1.0	48.5	29.0	34.0	16000	19000	0.6	0.19
NN3007K	35	62	20	1.0	55	35.5	44.0	14000	17000	0.7	0.25
NN3008K	40	68	21	1.0	61	45.0	58.5	12000	15000	0.9	0.31
NN3009K	45	75	23	1.0	67.5	54.0	72.0	11000	14000	1.0	0.40
NN3010K	50	80	23	1.0	72.5	57.0	80.0	10000	13000	1.1	0.41
NN3011K	55	90	26	1.1	81	72.0	100.0	9000	11000	1.3	0.65
NN3012K	60	95	26	1.1	86.1	75.0	110.0	8500	10000	1.4	0.67
NN3013K	65	100	26	1.1	91	76.5	116.0	8000	9500	1.4	0.74
NN3014K	70	110	30	1.1	100	98.0	150.0	7000	8500	1.6	1.07
NN3015K	75	115	30	1.1	105	100.0	156.0	6700	8000	1.7	1.13
NN3016K	80	123	34	1.1	113	123.0	186.0	6300	7500	1.8	1.56
NN3017K	85	130	34	1.1	118	125.0	200.0	6000	7000	1.9	1.64
NN3018K	90	140	37	1.5	127	140.0	224.0	5600	6700	2.0	2.13
NN3019K	95	145	37	1.5	132	143.0	236.0	5300	6300	2.1	2.23
NN3020K	100	150	37	1.5	137	146.0	245.0	5300	6300	2.1	2.32
NN3021K	105	160	41	2.0	146	190.0	310.0	4800	5600	2.3	2.96
NN3022K	110	170	45	2.0	155	220.0	360.0	4500	5300	2.5	3.76
NN3024K	120	180	46	2.0	165	232.0	390.0	4300	5000	2.7	4.10
NN3026K	130	200	52	2.0	182	290.0	500.0	3800	4500	2.9	6.04
NN3028K	140	210	53	2.0	192	300.0	520.0	3600	4300	3.0	6.48
NN3030K	150	225	56	2.1	206	335.0	585.0	3400	4000	3.3	7.88
NN3032K	160	240	60	2.1	219	375.0	670.0	3200	3800	3.5	9.57
NN3034K	170	260	67	2.1	236	450.0	800.0	3000	3600	3.7	13.0
NN3036K	180	280	74	2.1	255	570.0	1000.0	2800	3400	4.0	17.0
NN3038K	190	290	75	2.1	265	585.0	1040.0	2600	3200	4.1	18.0
NN3040K	200	310	82	2.1	282	655.0	1200.0	2400	3000	4.4	23.0

Features and benefits

HBZYY cylindrical roller bearing features are as follows:

High RPM
High radial load carrying capacity
High rigidity
High precision
Low friction

Cylindrical roller bearings are used in machine tools and printing machinery, and the linear expansion generated during operation can be compensated by the float between the roller and the raceway.

Applications

Large and medium-sized motor.
Rolling stock.
Machine tool spindle.
Internal combustion engine, generator, gas turbine.
Gear box, rolling mill, vibrating screen and lifting and transportation machinery.
Mining, metallurgy, plastic machinery and other industries.
Material transportation, industrial transmission, machine tools.
Papermaking machinery, reducer, rolling mill gearbox base, all kinds of industrial reducer.

Bearing designations	Boundary dimensions					Load ratings		limiting speeds		Radial stiffness	weight
version	d	D	B	rsmin	E	Cr	Cor	Grease	Oil	Rr	≈
version	mm					KN		r/min		KN/um	kg
