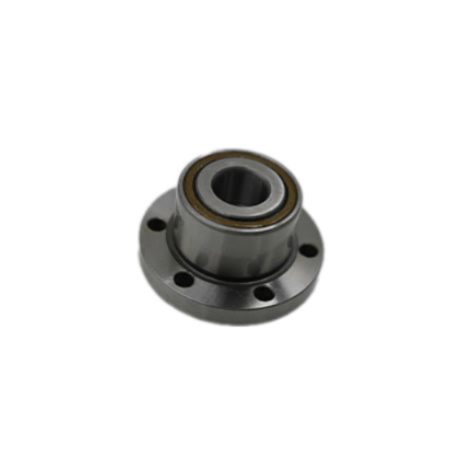

Ball screw bearings

Ball screw bearing is a key industrial product, which realizes efficient and accurate linear or rotary motion conversion through special structural design and material selection, and is widely used in various industrial equipment and precision instruments.

Product details

Ball screw bearings

FILTERS

Bore diameter d

mm

-

mm

Outside diameter D

mm

-

mm

Width B

mm

-

mm

Version

results

Features and benefits

HBZYY ball screw bearing features are as follows:

High precision
Low friction loss, high transmission rate
High reliability
High carrying capacity
Reversible and efficient
Friction resistance, long life

Ball screw bearings from HBZYY are widely used in industrial equipment and precision instruments.

Applications

Machine tool manufacturing.
Robotics.
The automotive industry.
Construction machinery, energy, port machinery, plastic machinery, agricultural machinery and other industries.
Aerospace and defence industries.
Precision instruments and medical equipment.
Automation equipment, precision testing and other fields.

More from us

Get In Touch

Please feel free to leave a message. We will reply you in 24 hours.



Online



+8617772617522



Message



Email

[email protected]



Submit Request

PDF Request

Simply fill out the form below and the catalog will be available for download!

760203TN1	17	40	12	0.6	31	23.0	34.5	0.6	16.6	20.0	13000	18000	0.07
760204TN1	20	47	14	1.0	36	27.5	39.5	1.0	19.3	25.0	12000	17000	0.13
760205TN1	25	52	15	1.0	41	32.0	45.0	1.0	22.0	30.5	11000	16000	0.16
760206TN1	30	62	16	1.0	48	39.5	52.5	1.0	26.0	39.0	9000	13000	0.24
760207TN1	35	72	17	1.1	55	46.5	60.5	1.1	30.0	50.0	8000	11000	0.34
760208TN1	40	80	18	1.1	62	53.5	69.5	1.1	37.5	64.0	7000	9500	0.44
760209TN1	45	85	19	1.1	66	57.0	73.0	1.1	38.0	68.0	6700	9000	0.50
760210TN1	50	90	20	1.1	71	63.0	79.0	1.1	39.0	75.0	6300	8500	0.57
760211TN1	55	100	21	1.5	78	69.5	85.5	1.5	40.5	81.5	6000	8000	0.75
760212TN1	60	110	22	1.5	86	77.0	96.0	1.5	56.0	112.0	5000	6700	0.96
760213TN1	65	120	23	1.5	92	84.0	103.0	1.5	57.0	122.0	4800	6300	1.20
760214TN1	70	125	24	1.5	96	87.0	108.0	1.5	65.5	137.0	4500	6000	1.32
760215TN1	75	130	25	1.5	101	93.5	114.5	1.5	67.0	150.0	4300	5600	1.45
760216TN1	80	140	26	2.0	108	100.0	122.0	2.0	76.5	175.0	4000	5300	1.76
760217TN1	85	150	28	2.0	116	107.0	131.0	2.0	86.5	196.0	3800	5000	2.19
760218TN1	90	160	30	2.0	123	113.5	138.5	2.0	98.0	224.0	3600	4800	2.69
760219TN1	95	170	32	2.1	131	119.5	146.5	2.1	110.0	255.0	3400	4500	3.26
760220TN1	100	180	34	2.1	138	125.5	154.5	2.1	122.0	285.0	3200	4300	3.91
760222TN1	110	200	38	2.1	153	139.0	171.0	2.1	146.0	355.0	2800	3800	5.50
760224TN1	120	215	40	2.1	165	150.0	185.0	2.1	176.0	425.0	2600	3600	6.50
760226TN1	130	230	40	3.0	176	162.5	197.0	3.0	180.0	455.0	2400	3400	7.40
